Banbury rubber knead

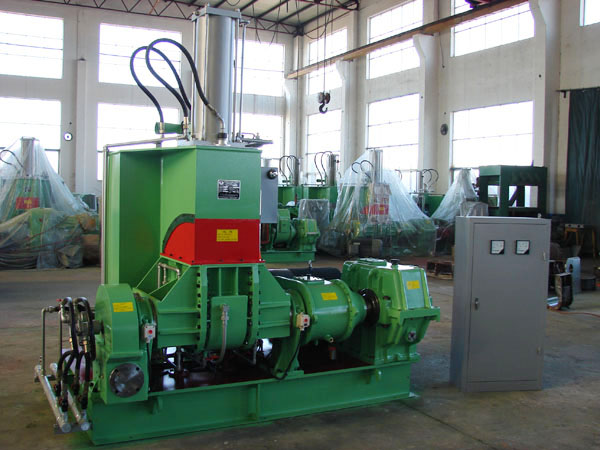

Kneader (internal mixer)-pressurized kneader is suitable for the mastication of rubber and plastics and the mixing of various rubber materials. This machine is composed of electric motor, pressing device, frame, mixing chamber and rotor mechanism, plastic reducing machine, air control system, turning device, heating and cooling system, belt transmission device and base.
Main technical parameters of kneader (internal mixer)-pressurized kneader:
Model Technical parameter | X(S)N-35/30 | X(S)N-55/30 | X(S)N-75/30 |
| Total volume of mixing chamber L | 75 | 125 | 175 |
| Total working volume of mixing chamber L | 35 | 55 | 75 |
| Rotor speed ratio of front and rear | 1:1.22 | 1:1.22 | 1:1.22 |
| Main motor power KW | 55 | 75 | 110 |
| Main motor speed rpm | 985 | 985 | 980 |
| Flip angle | 140° | 140° | 140° |
| Dimensions (L×W×H)(mm) | 3200×1900×2950 | 3750×1950×3050 | 3760×2143×3650 |
| Weight Kg | 6500 | 7800 | 10000 |
